01Construction
Aluminium
All systems
Industrial / GL Series
GL Series
A separate gantry crane range for workshops, maintenance and industrial handling. Four beam lengths are available, with an integrated aid for one-person setup.
Separate industrial range
Lifting height range2.14–2.90 m
Capacity across lifting range2,000 kg across 2.14–2.90 m
System weight163–185 kg
HoistNot included
KOVALTI / Interactive 3D view
Explore the lift.
See how it works.
Choose a model, take a closer look in 3D and try the lifting animation. You can check its specifications alongside the demonstration.
Loading the 3D view…
01 Model features
Why choose
GL Series.
For workshop, maintenance and industrial lifting, with a setup aid and a choice of working widths.
01
02Trolley
Included
03Transport configuration
Non-folding structure; dismantles into three main assemblies for transport
02 Product gallery
A closer look.
Product photographs with restyled backgrounds.

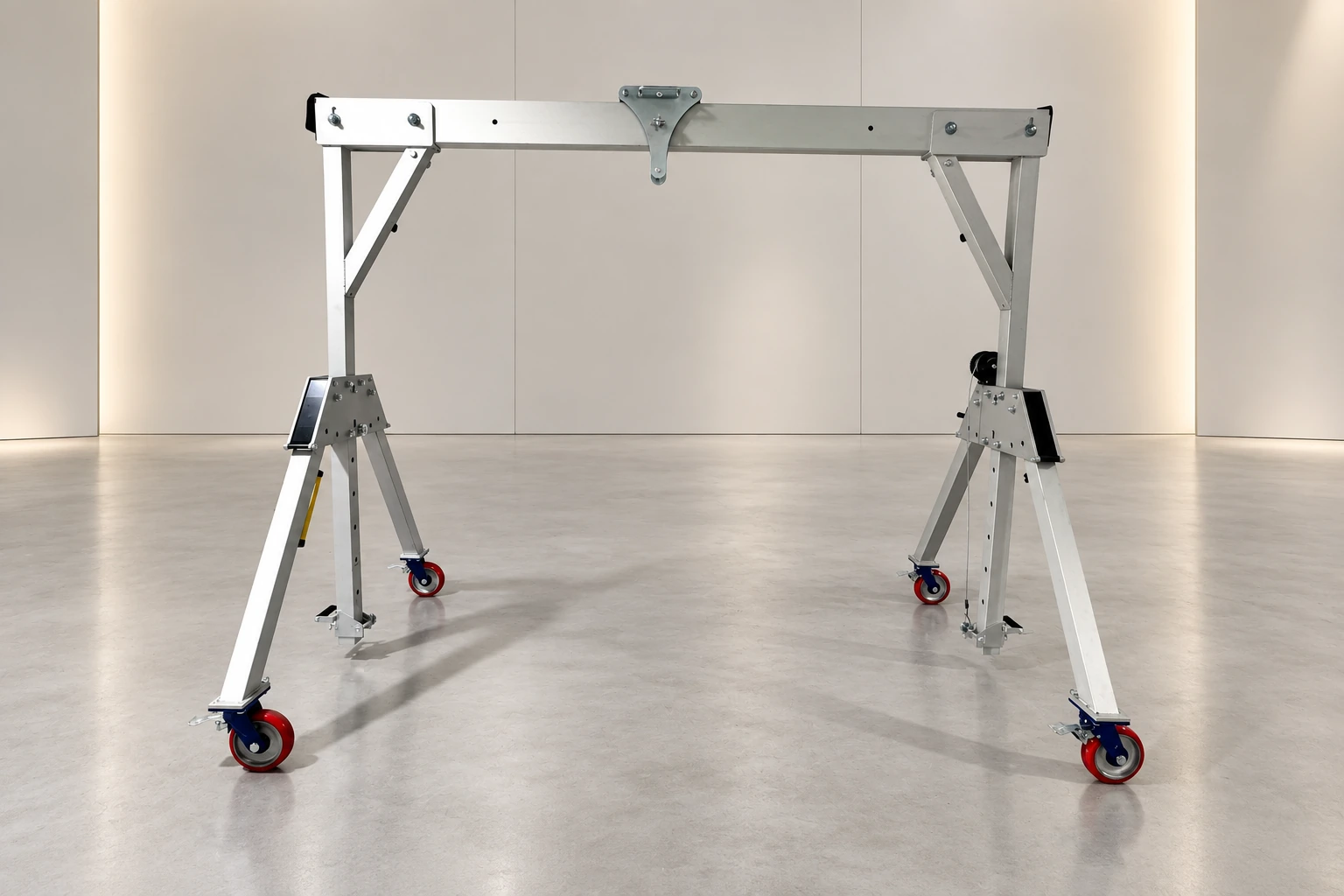

06 Product photographsProduct viewFront view
Photographed configuration; final model details remain to be confirmed.
Choose a view
03 Applications and industries
For everyday installation work.
The GL Series is intended for industrial tasks that need a temporary overhead lifting structure, rather than the installation work served by the E and M lifts.
Typical applications
Industrial maintenance
Workshops and manufacturing
Material processing
Plant and equipment handling
04 Technical data
Technical details
at a glance.
Check the specifications as you plan your work. Contact us with questions about configuration, availability or technical documentation.
- Model
- GL Series
- Type
- Portable aluminium gantry lift
- Lifting height range
- 2.14–2.90 m
- Capacity across lifting range
- 2,000 kg across 2.14–2.90 m
- System weight
- 163–185 kg
- Hoist
- Not included
- Construction
- Aluminium
- Beam options
- 2.4 m · 3 m · 4 m · 5 m
- Maximum overall height
- 3.27 m
- Transport configuration
- Non-folding structure; dismantles into three main assemblies for transport
- Setup
- One operator using the integrated setup aid; setup time not yet confirmed
- Trolley
- Included
- Chain hoist
- Not included
- Movement under load
- Load-dependent and not permitted at full rated load; final instructions pending
- Documentation
- Technical and conformity documents pending validation
Recommended applications
Industrial maintenance
Workshops and manufacturing
Material processing
Plant and equipment handling
GL Series / Technical data
FAQ
How high can GL Series lift?
GL Series — Lifting height range: 2.14–2.90 m. Capacity by lifting height: 2,000 kg across the 2.14–2.90 m lifting range.
What is the lifting capacity of GL Series?
GL Series — Capacity by lifting height: 2,000 kg across the 2.14–2.90 m lifting range.
How much does GL Series weigh?
GL Series — Machine weight: 163–185 kg.
How is GL Series operated?
GL Series — Operation: User-supplied hoist. Chain hoist: Not included.
