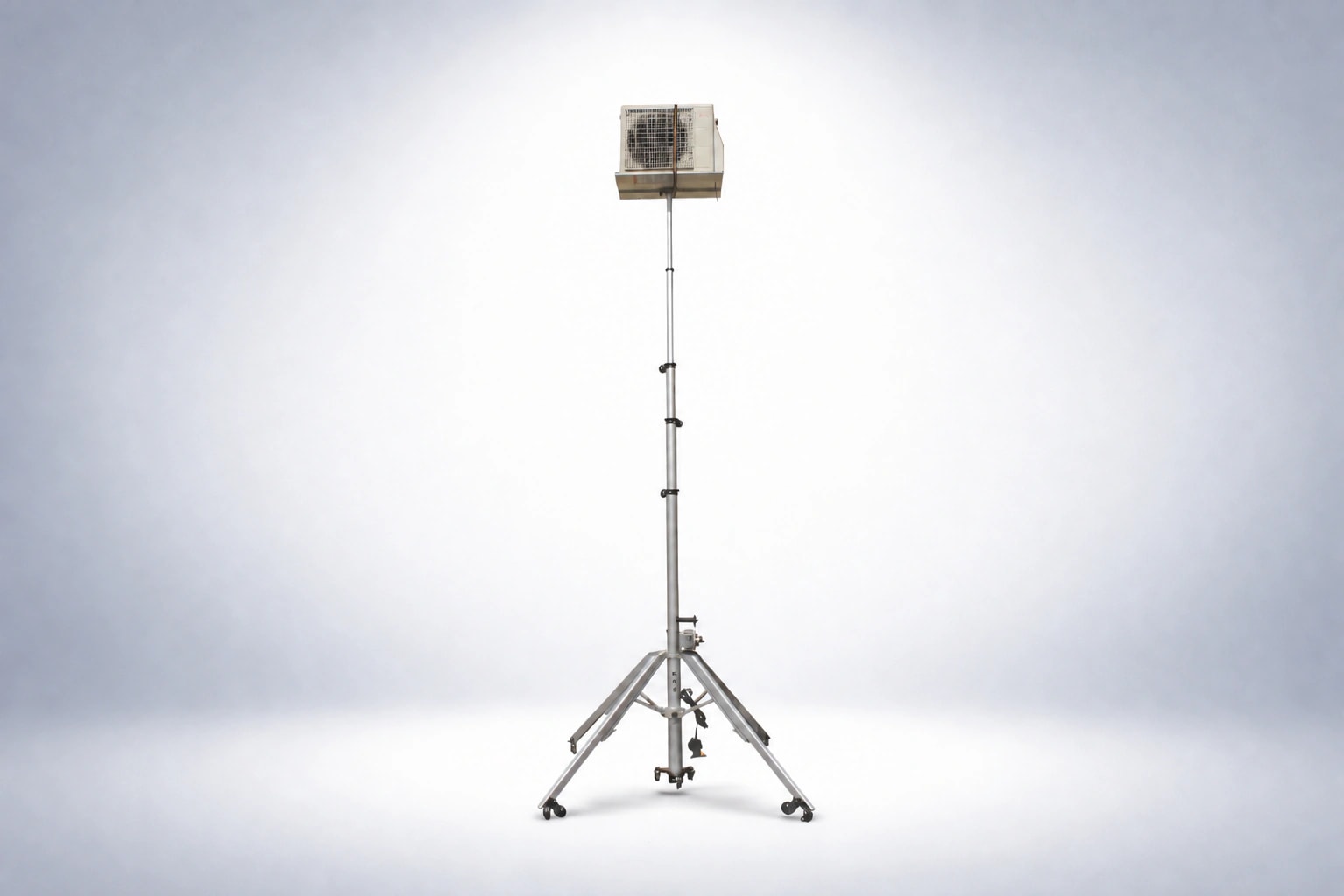

01Greater lifting reach
With a lifting height of up to 4.9 m, the CM 520 is intended for jobs that require more vertical reach than compact lower-height models.
All systems
Electric / CM Series
CM 520
A taller, site-ready electric material lift designed for controlled lifting up to 4.9 m, with built-in transport wheels, adjustable legs and practical setup for demanding installation work.
High reach
Maximum lifting height4.9 m
Maximum capacity130 kg
Machine weight37.5 kg
Operation230 V
01 Built for controlled work
Why choose
CM 520.
Maximum CM reach and lifting capacity. The design stays focused on practical setup, accurate positioning and professional installation work.
01

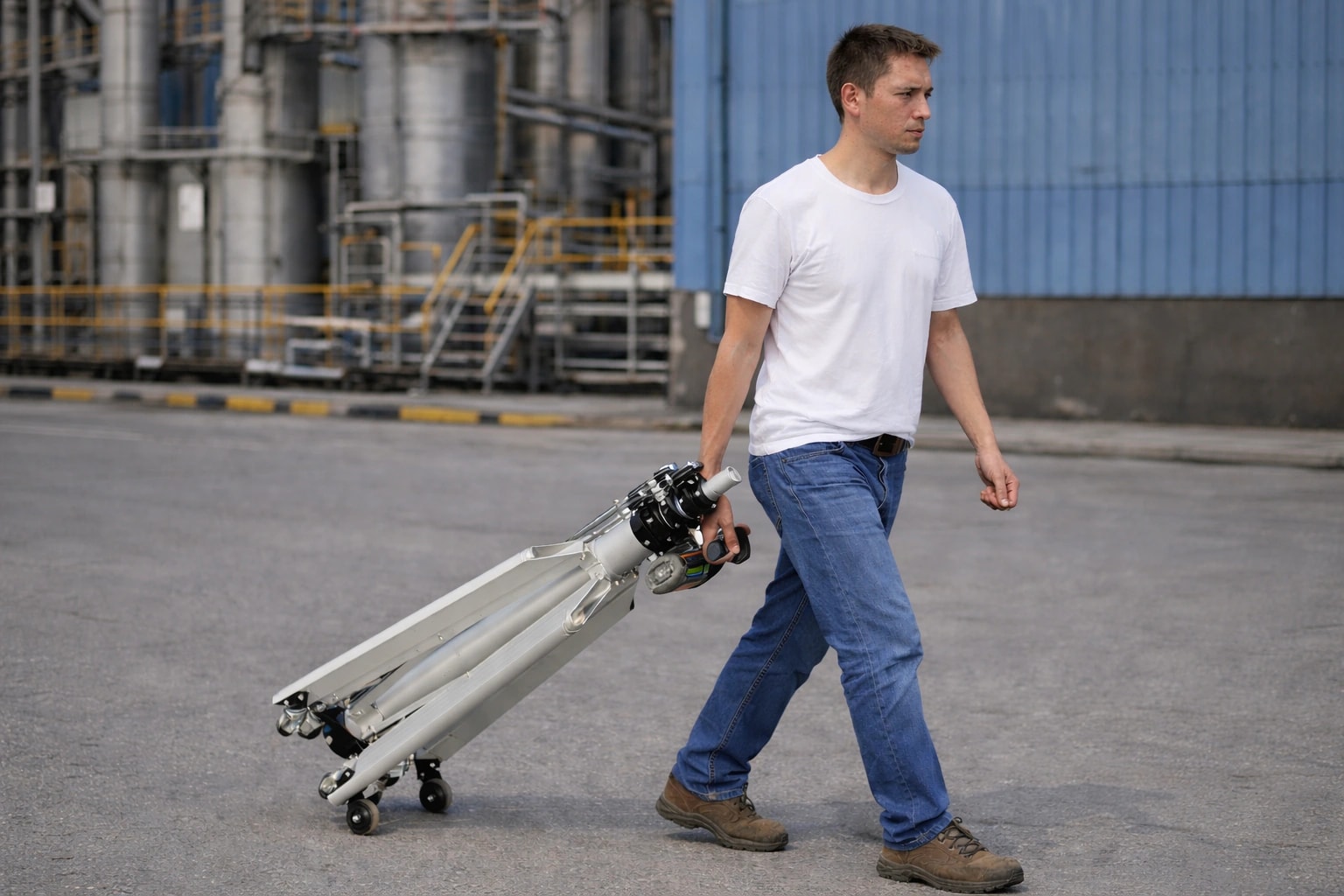

02Portable but more capable
Even with its taller mast, the CM 520 remains portable and is designed for quick site handling thanks to its integrated transport wheels and handling layout.

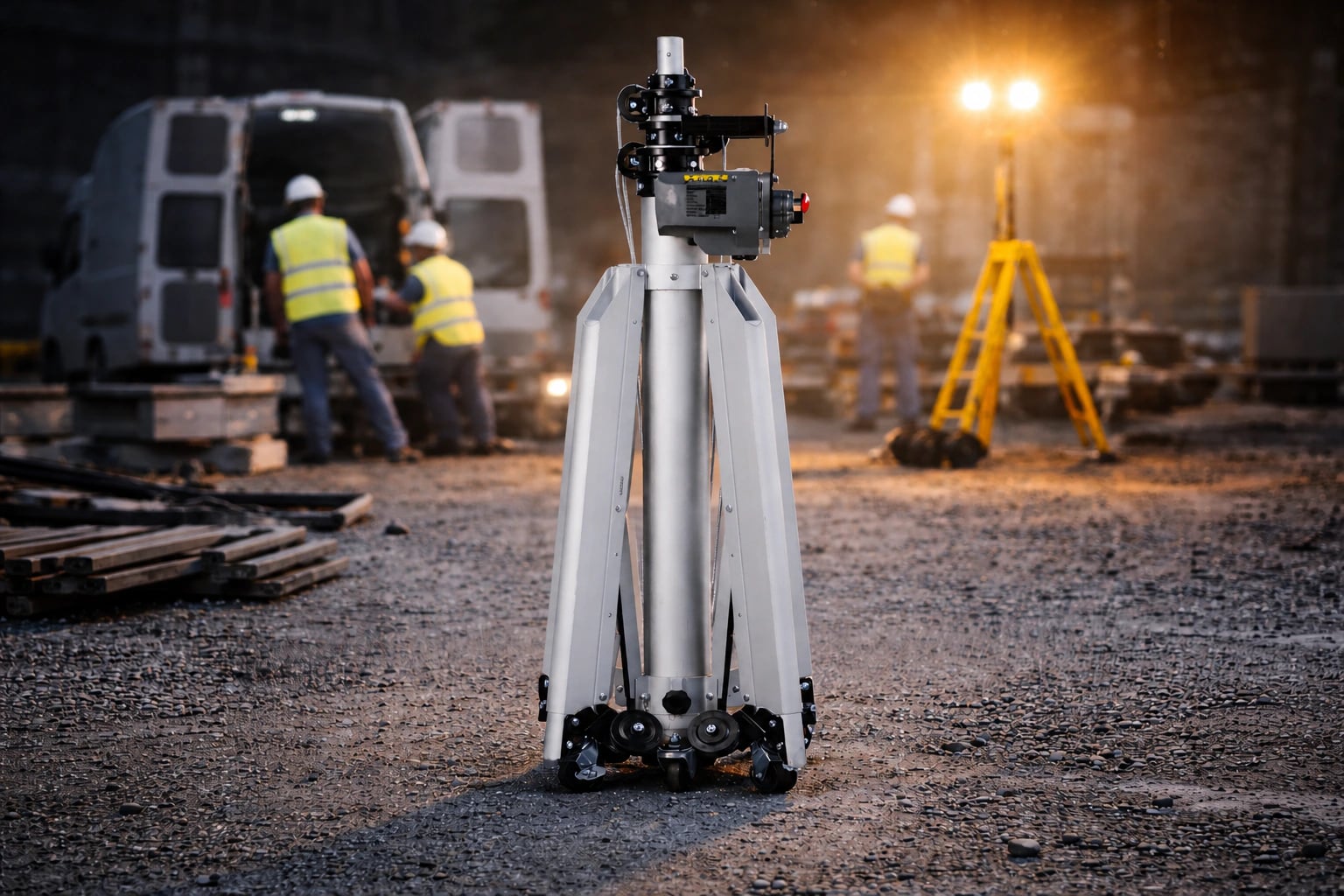

03Fast setup on site
The lift is designed to be deployed in seconds without tools, helping installers move quickly from transport to working position.
04Adjustable legs and close-to-wall working capability
Its telescopic legs are designed for use on sloped ground, stairs and uneven surfaces. A dedicated setup also supports work closer to a wall or façade edge.

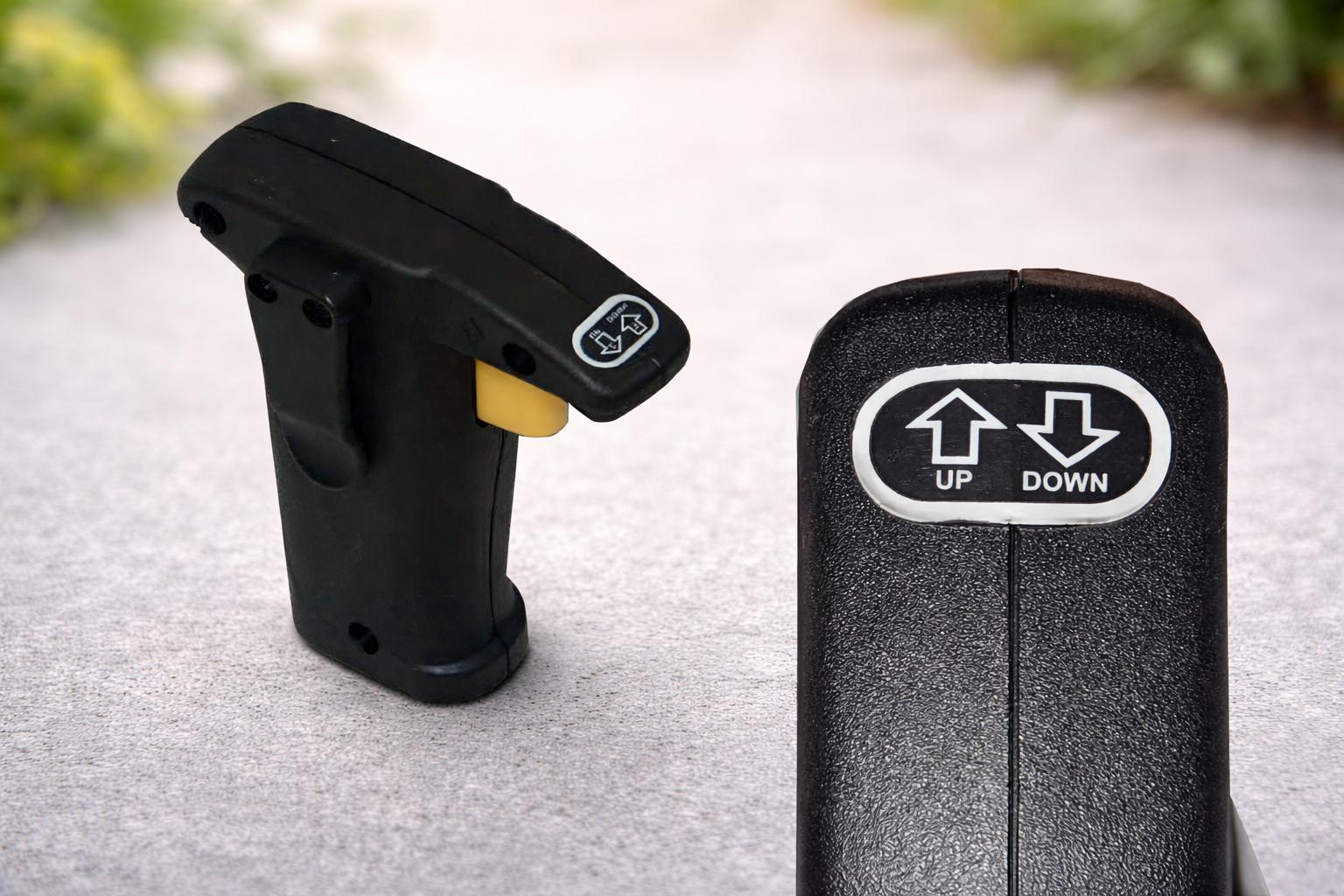

05Variable-speed electric lifting
The lift uses a 230 V single-phase electric drive with variable-speed control for smoother starts and better lifting control.

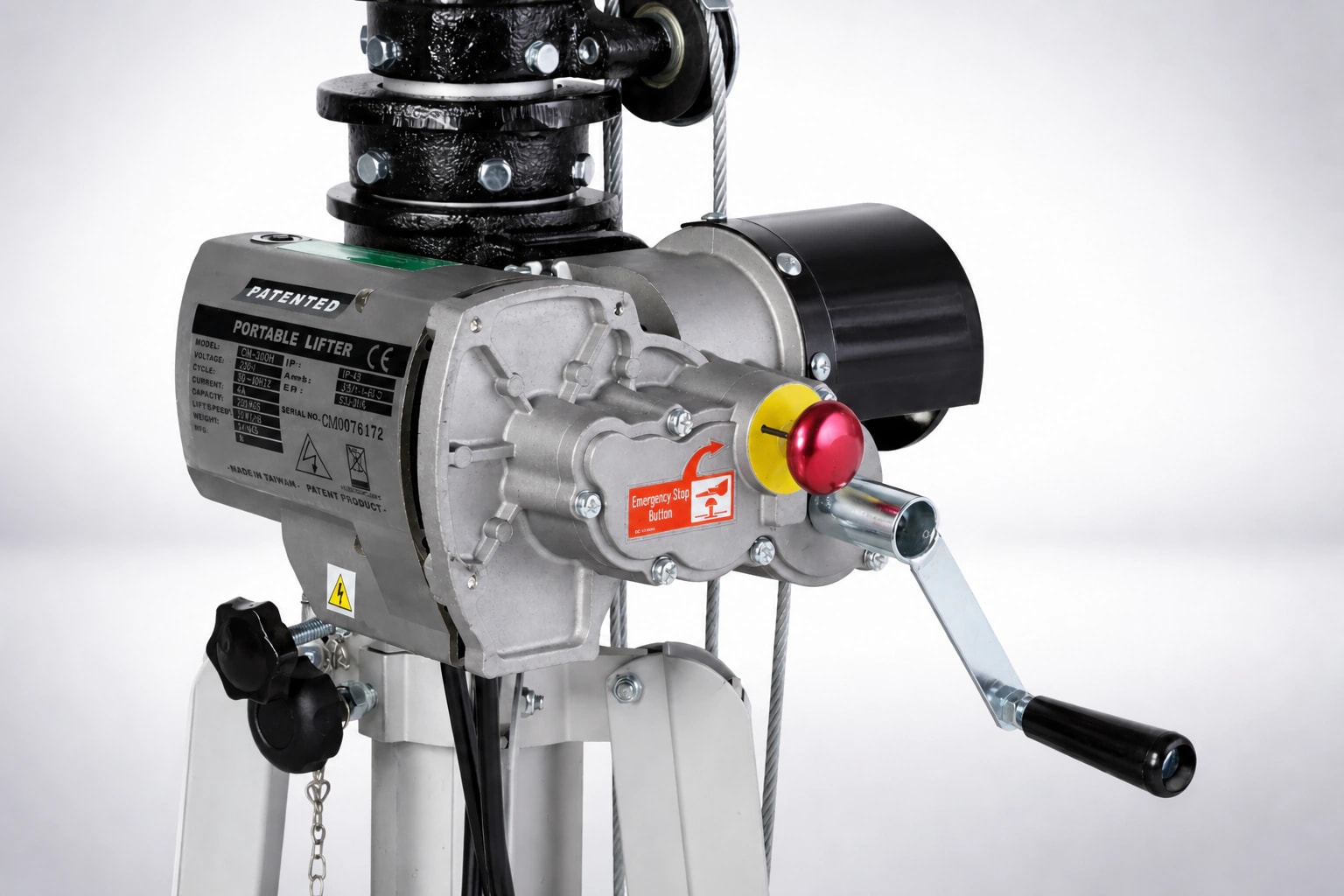

06Manual backup operation
If needed, the CM 520 can also be operated manually with the supplied handle, or with a compatible cordless drill.

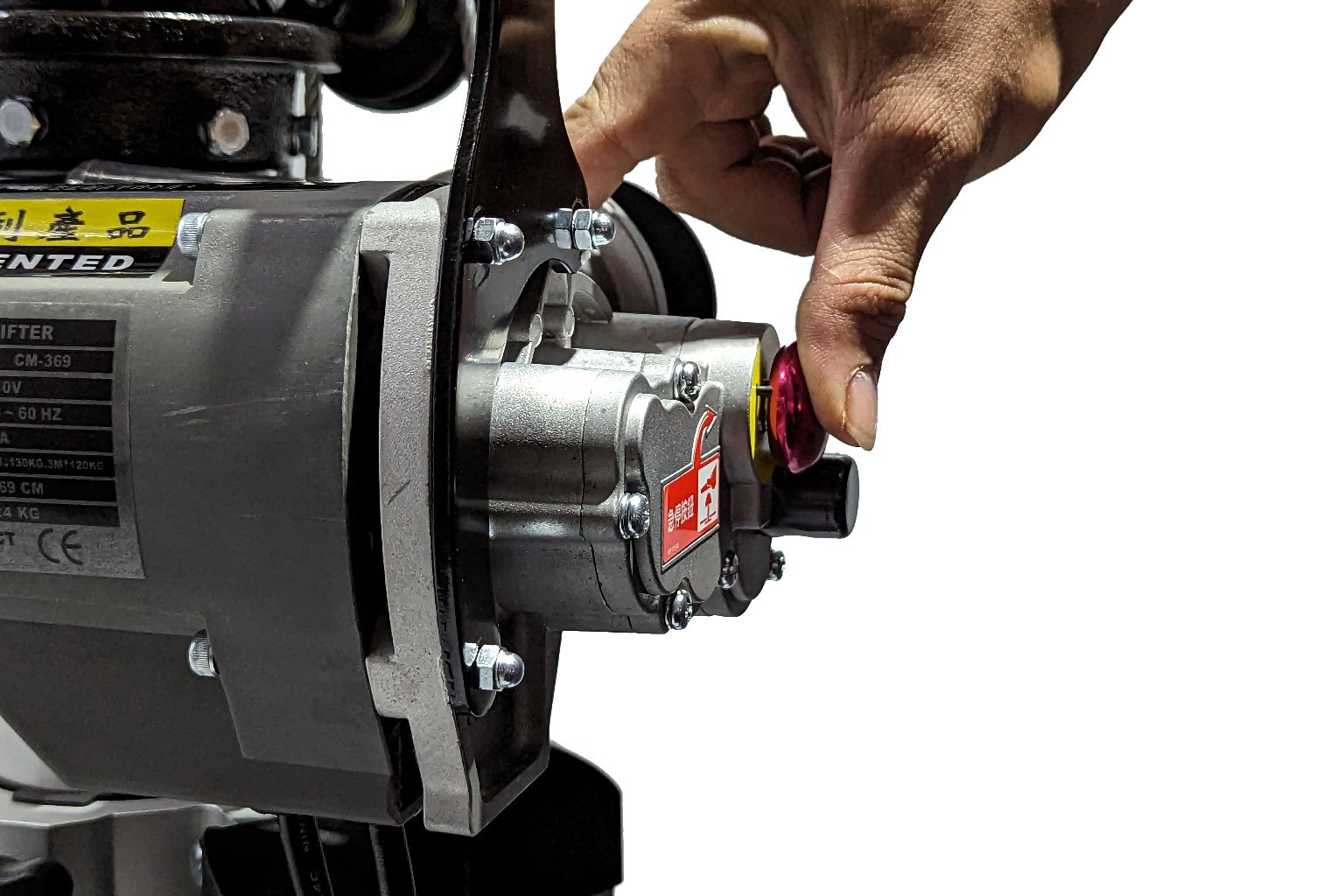

07Built-in overload and emergency stop protection
Overload protection and an emergency stop system allow the operator to interrupt lifting or lowering immediately.

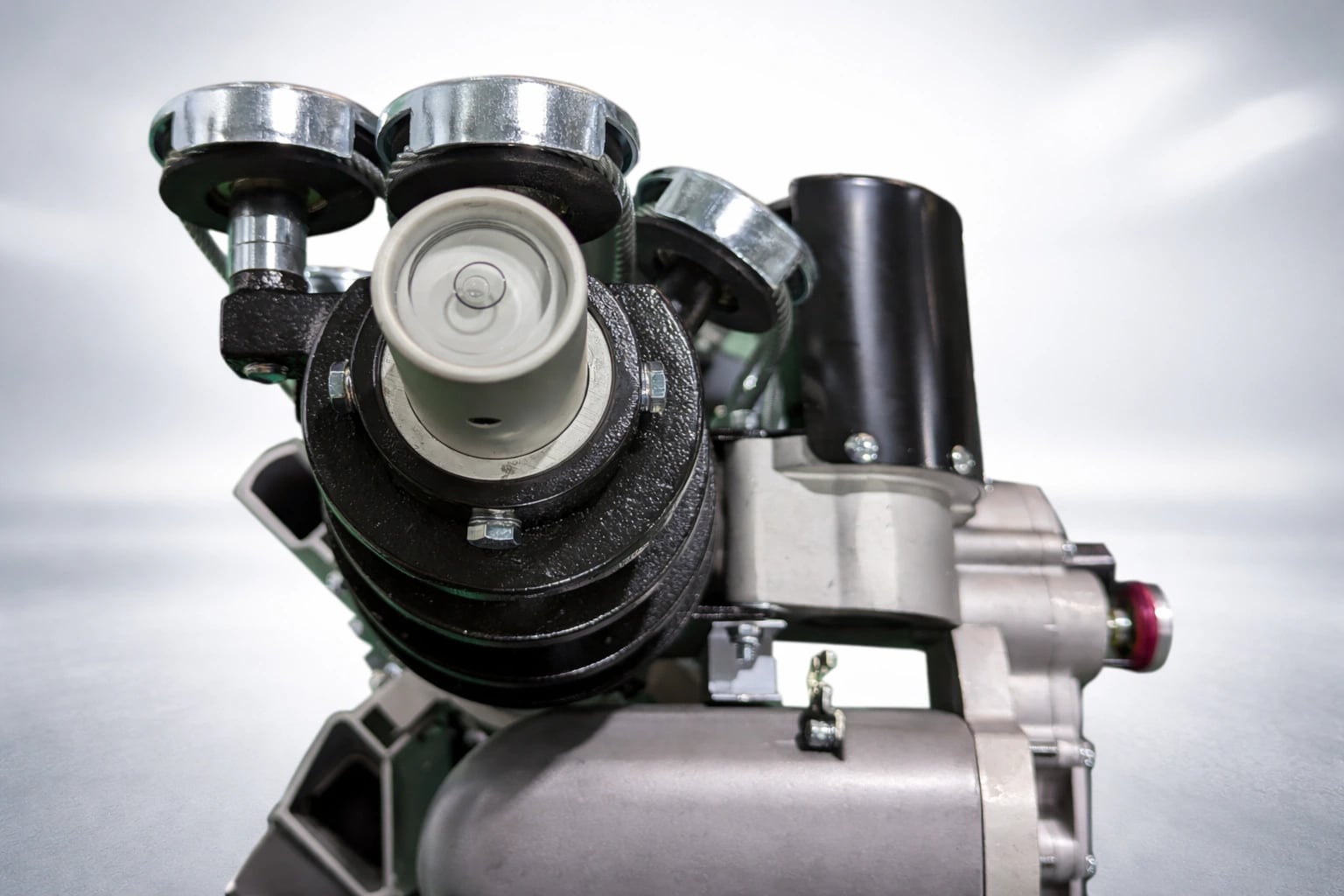

08Integrated spirit level
A level indicator helps the operator confirm proper setup before lifting.

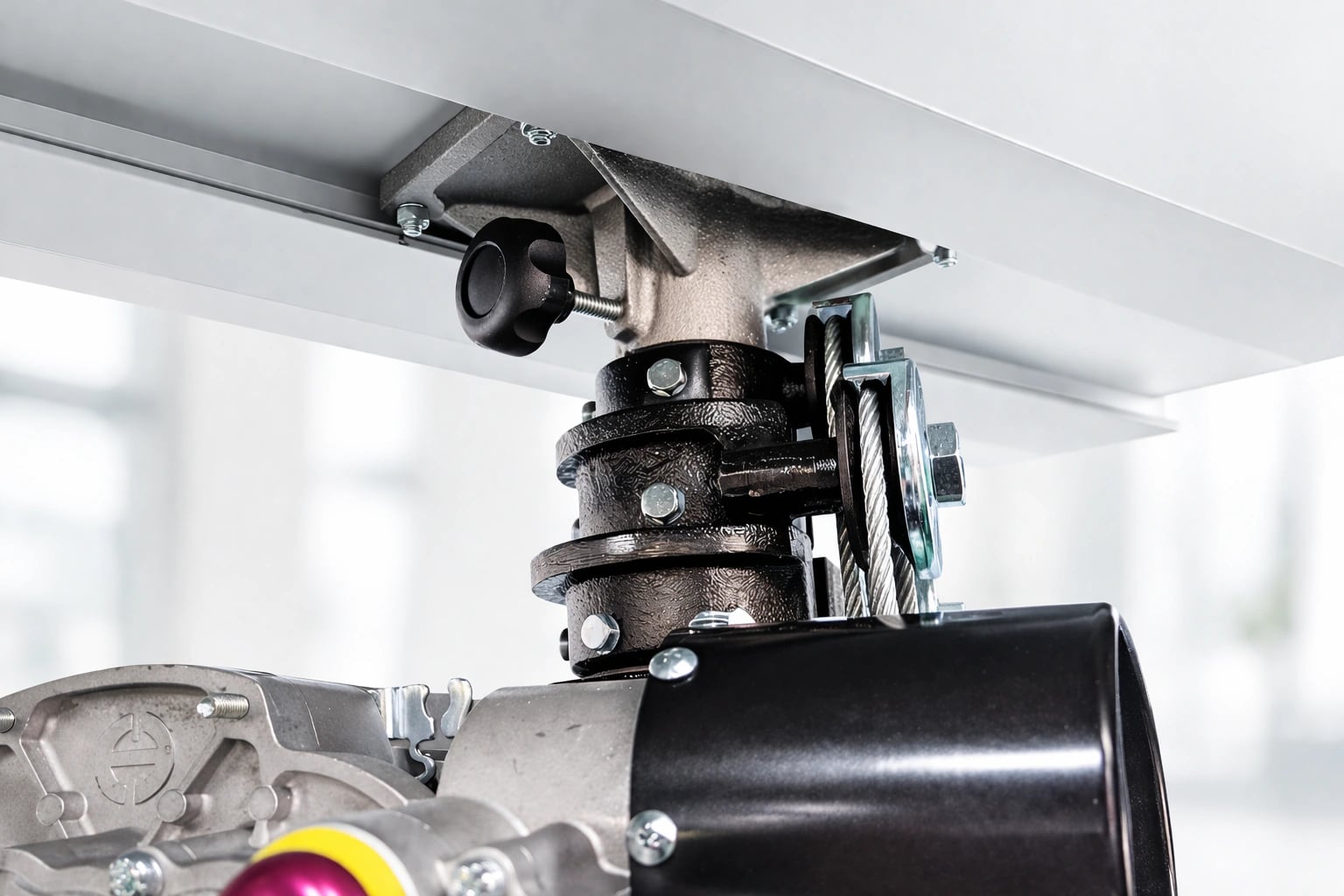

09Rotating platform
The platform rotates 360° and can be locked in multiple positions, giving installers more flexibility when positioning materials.
02 Product gallery
See CM 520 in real use.
Product views first, then product details and application views. Shared range components are labelled as such.
12 product and application views

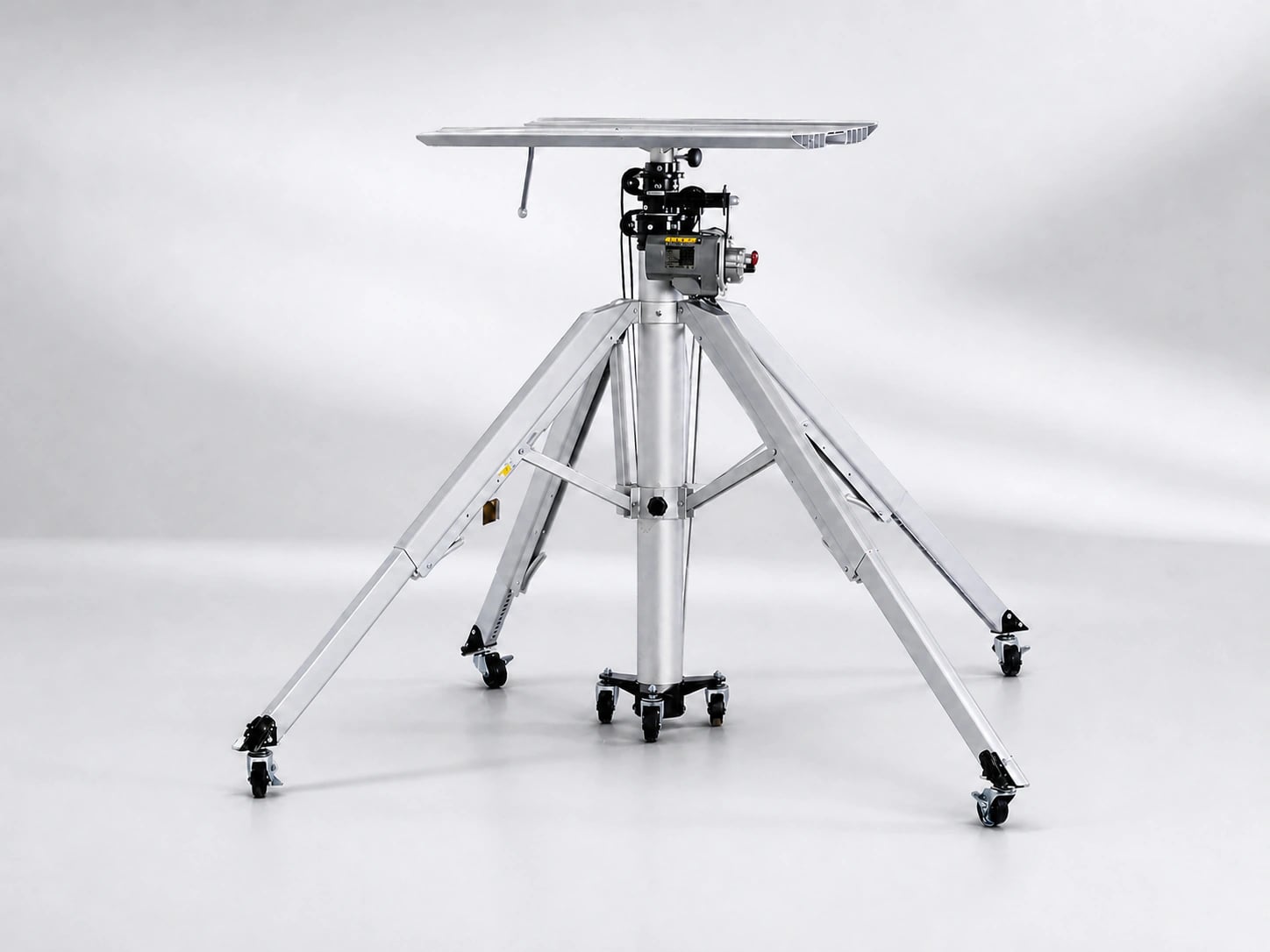

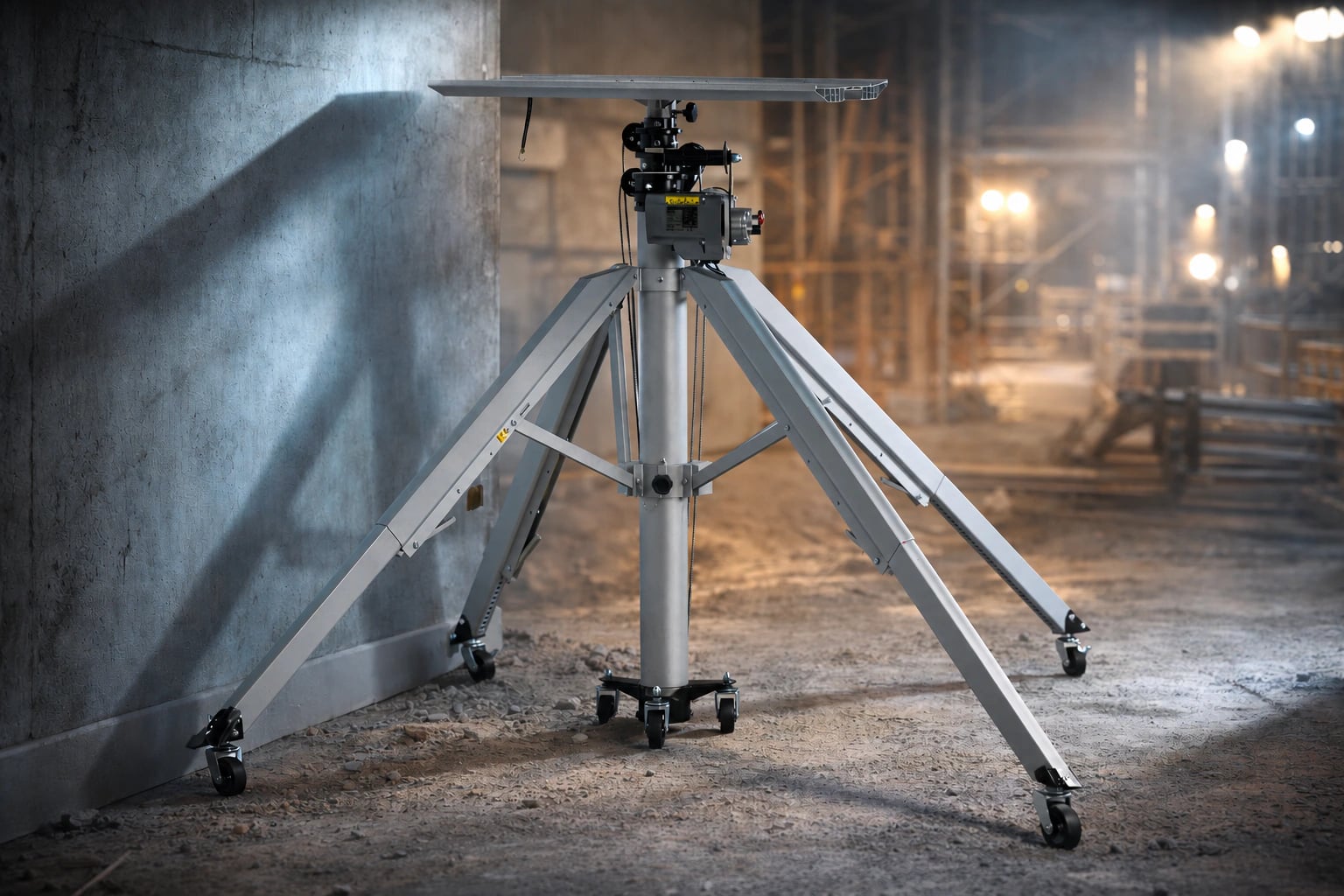

Product viewCM 520 hero view
CM 520 presented in its complete working configuration.
Choose a view
03 Applications and industries
Built for real installation work.
The CM 520 is the high-reach electric option for technical work where vertical access, positioning control and site portability must work together.

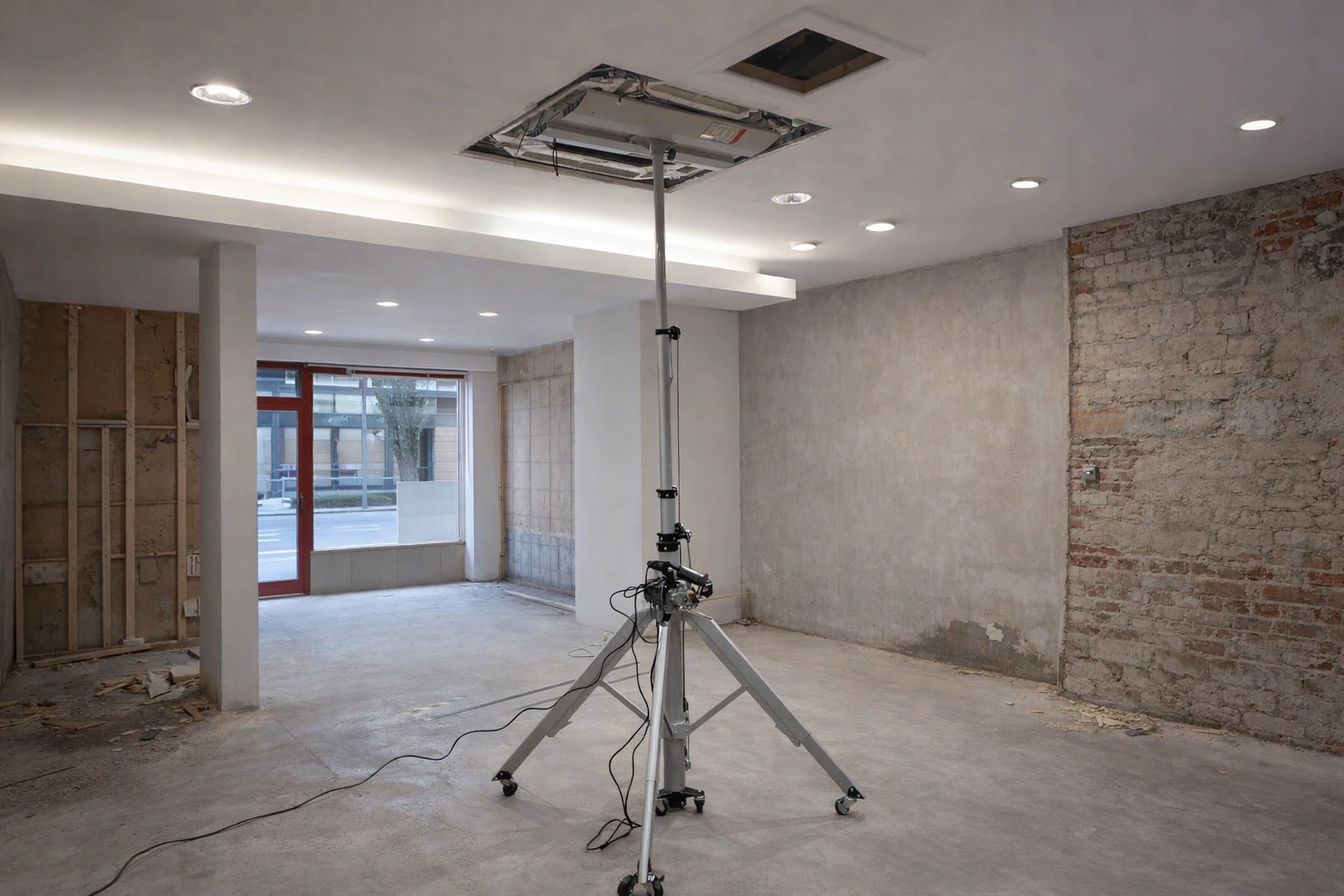

01Indoor high-reach work
Controlled positioning for suspended elements, lighting and technical equipment.
02HVAC and air-conditioning

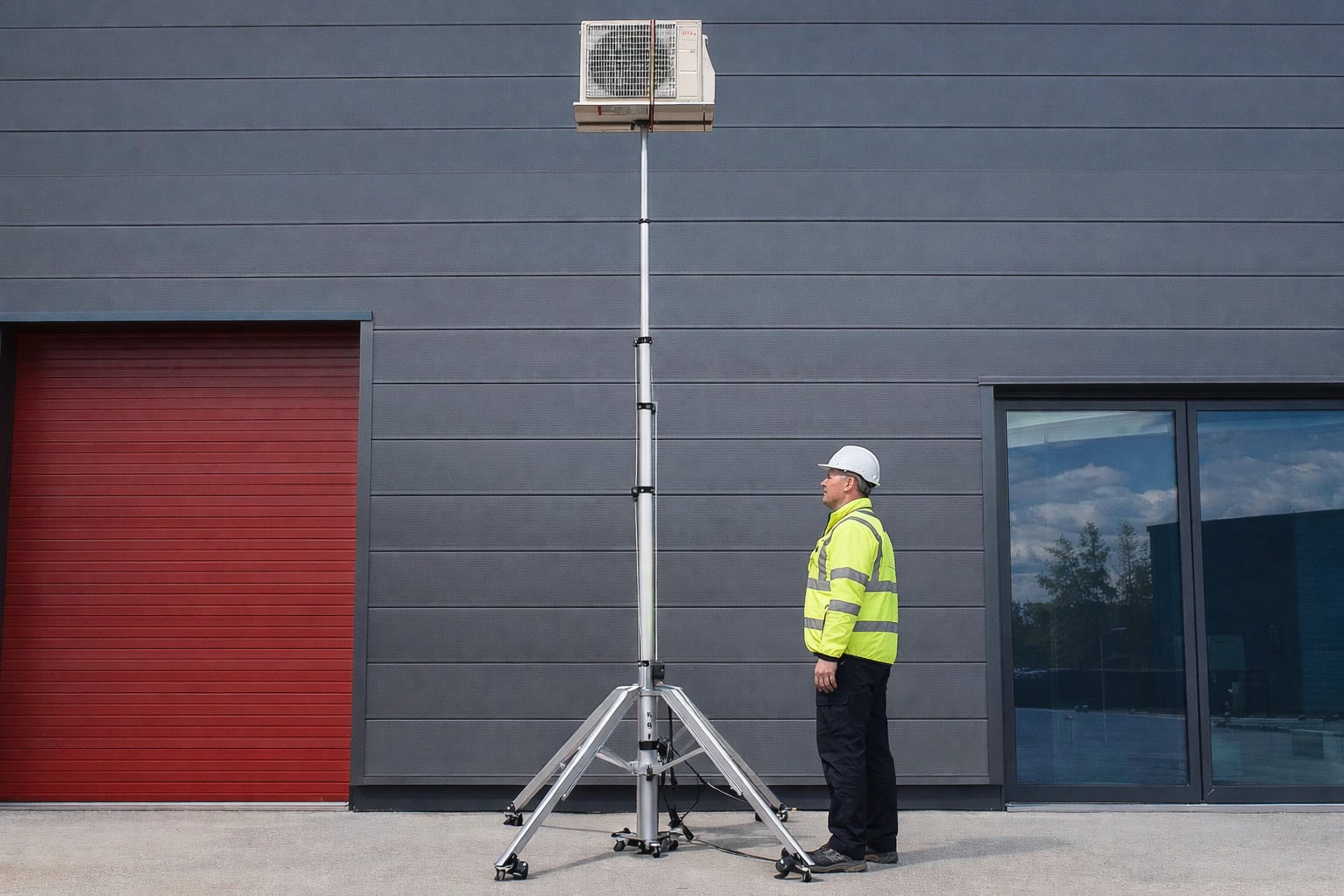

Greater lifting height for high-mounted HVAC equipment, ducting and pipework.

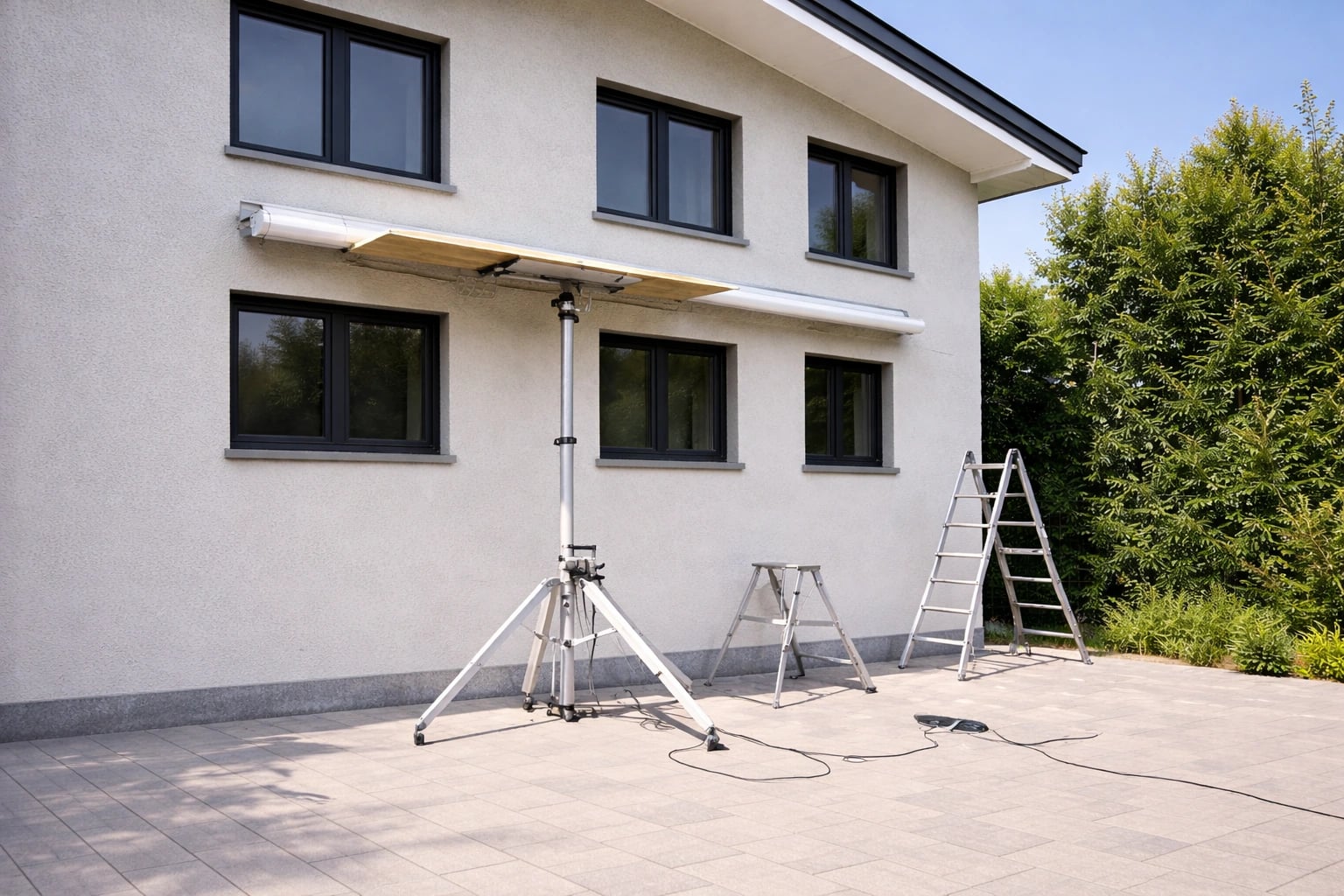

03Façade installation
High-reach support for exterior systems, awnings and building envelope work.
Typical applications
HVAC installation
Air-conditioning unit lifting and positioning
Ducting and piping work
Awnings and shading systems
Garage and industrial door installation
Screens, cameras and technical equipment
Lighting and suspended elements
Shelving and general installation work
04 Technical data
Technical facts
for the job.
Product data for professional evaluation. Request the available documentation for model-specific guidance.
- Model
- CM 520
- Type
- Portable electric material lift
- Maximum lifting height
- 4.9 m
- Maximum capacity
- 130 kg
- Machine weight
- 37.5 kg
- Operation
- 230 V
- Base height
- 1,120 mm
- Capacity by lifting height
- 130 kg at 3 m · 120 kg at 4 m · 90 kg at 4.9 m
- Platform weight
- 5.3 kg
- Closed footprint
- 380 × 380 mm
- Open footprint
- 1.5 × 1.5 m
- Power supply
- 230 V / 4 A single-phase
Recommended applications
HVAC installation
Air-conditioning unit lifting and positioning
Ducting and piping work
Awnings and shading systems
Garage and industrial door installation
Screens, cameras and technical equipment
Lighting and suspended elements
Shelving and general installation work
05 Compatible equipment
Configure it
for the task.
Choose equipment according to the material, access route and working conditions. Final compatibility must be confirmed in the current product documentation.

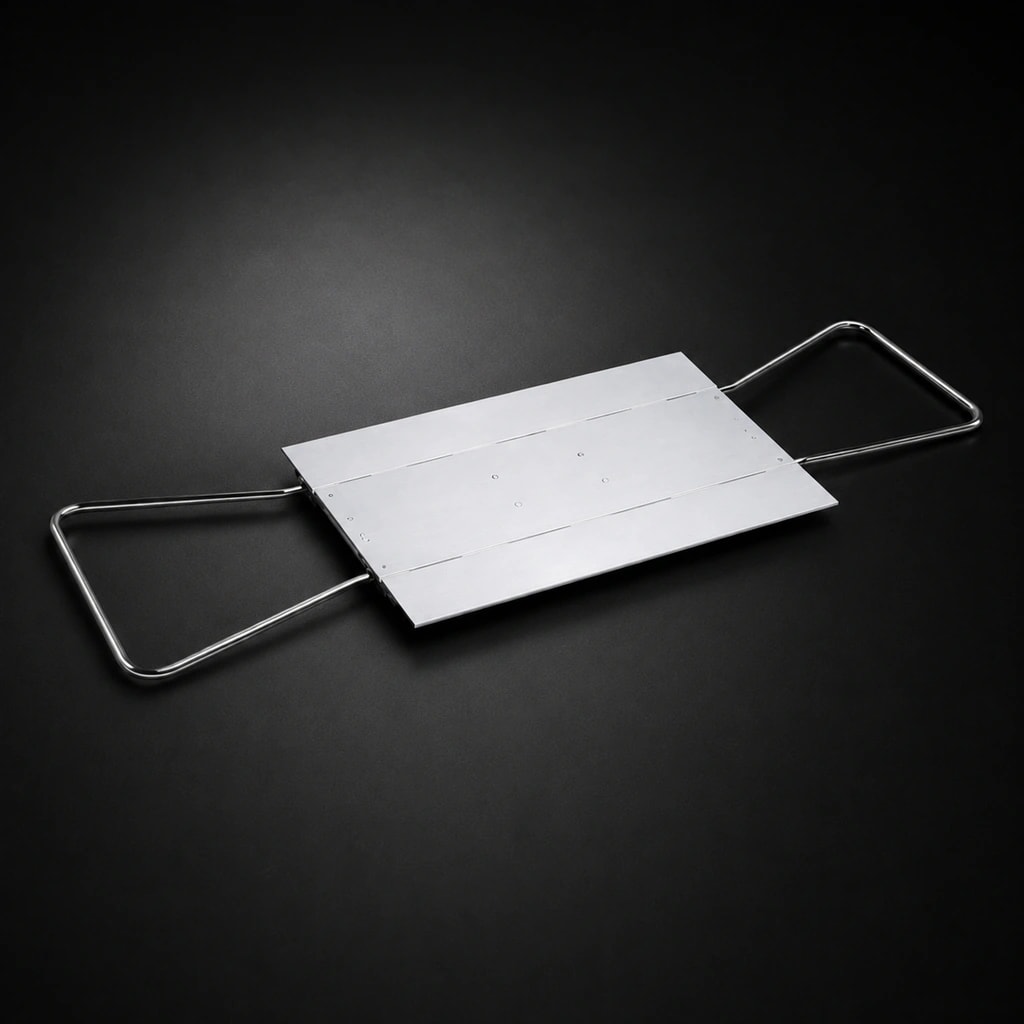

01Platform extensions
2 × 380 mm

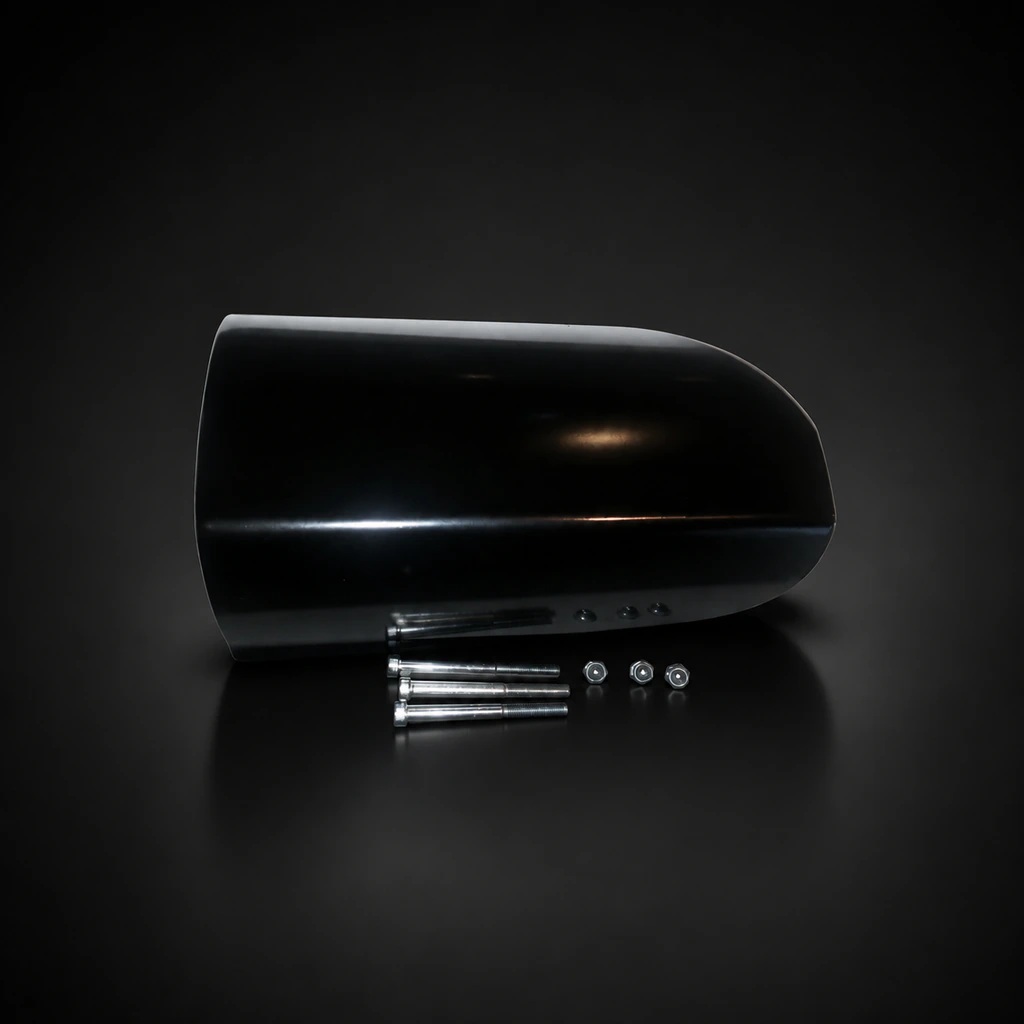

02Motor protection cover
CM Series

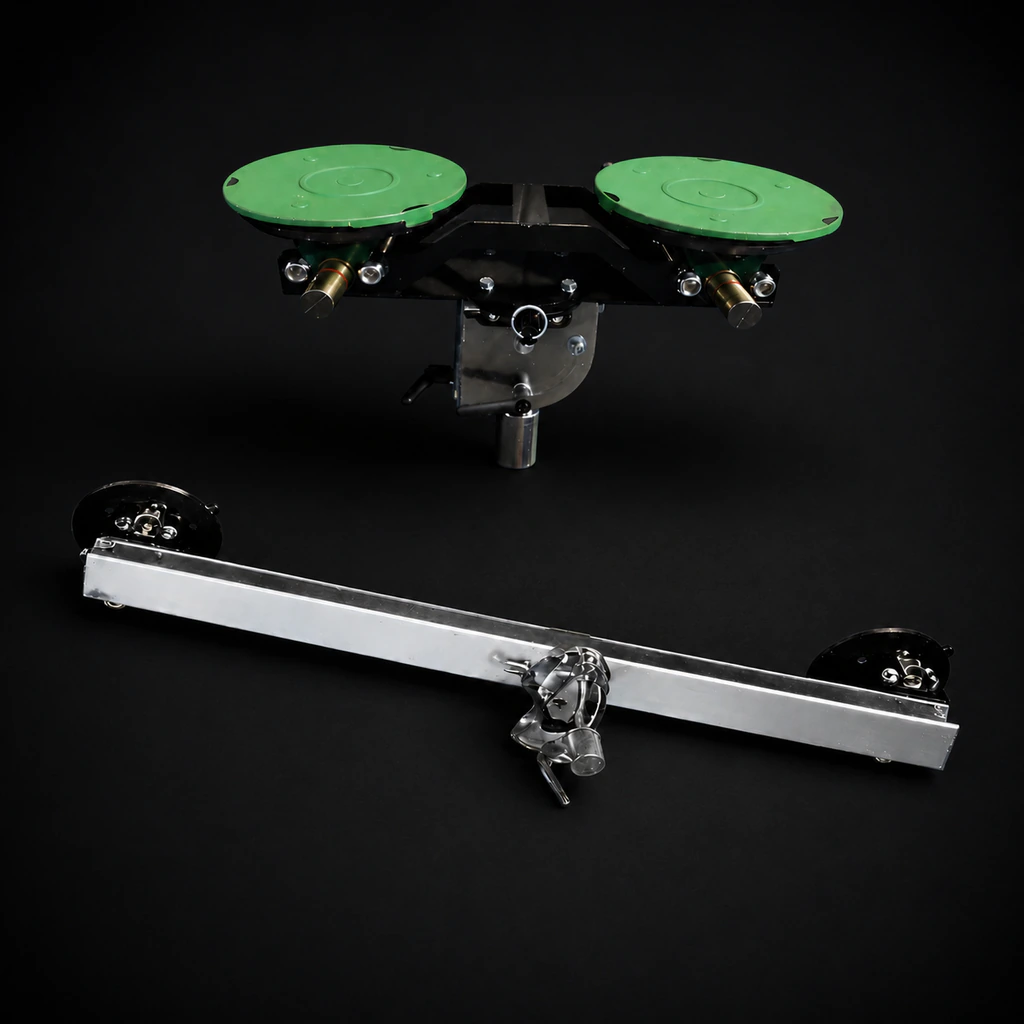

032-pad glass cradle G-CM / G-LS
Maximum load 70 kg
CM 520 / Professional enquiry
